ACS (Automatic Charge Selectors)

Main Acs

You have a project?

Call Nicolas now +33 (0)6 09 97 63 76


Ask Nicolas to call you

Thank you for your interest in Dolphin Charger's DNVGL products. Nicolas will get back to you as soon as possible.

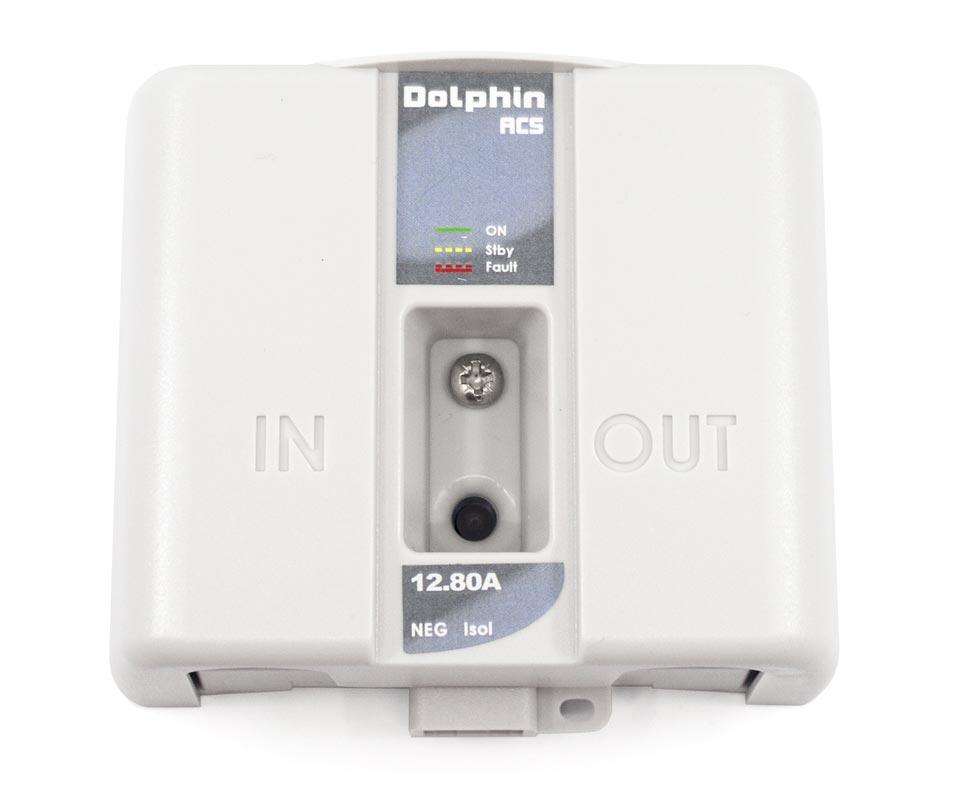

Our Automatic Charge Selectors are smart, 100% waterproof (IP67) and compact voltage-sensing relays which automatically manage the charge function between your start and service battery banks. DOLPHIN ACS are the ideal charging-relays for outboard engine boats.

SuperSafe (Unique feature)

Our cutting-edge “Current Limit Function” is built on MOSFET technology and includes a one-way operating “blocking diode function”: this prevents domestic (house/service) battery voltage drop when starting your engine or bow thruster. Result: no more sensitive electronics damaged onboard (GPS, etc.).

ACS is also intrinsically safe against ignition of atmospheric flammable vapours (ISO 8846) which makes it safe for installation on gasoline outboard engine boats.


No more manual battery selection. No more drained batteries. Our ACS reduces amperage operating current by up to 70% in comparison with other voltage sensing relays currently on the market. Our ACS is particularly recommended for use with Lithium batteries.

100% WaterProof

ACS products are true Dolphins: they are IP67 certified.

Other assets...

With ACS, forget manual battery selection.
moving parts with high failure rate.
battery voltage drop.
drained batteries.

And, last but not least, DOLPHIN ACS reduces operating amperage by up to 70% in comparison with other voltage-sensing relays currently on the market.

Technical specifications:

System voltage: 12 Volts
Current rating:
50 Amp Continuous / 120 Amp Peak
80 Amp Continuous / 190 Amp Peak
ACS units come with a multi-colour LED control and remote operation switch contact

Professionals, you can order your ACS right now ! (simply click here)

2 version(s) available

12V 50A

Ref : 399250

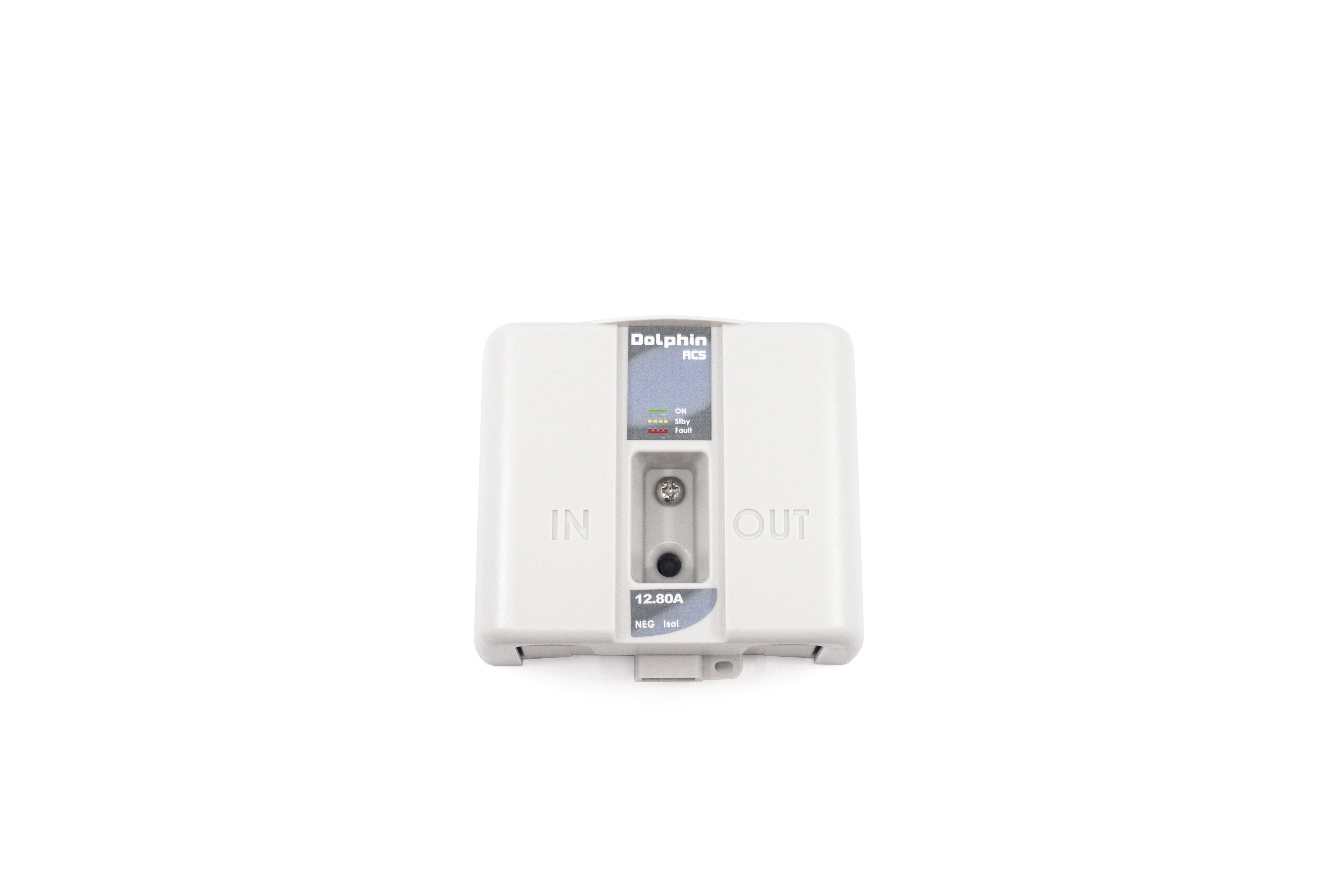

12V 80A

Ref : 399260
